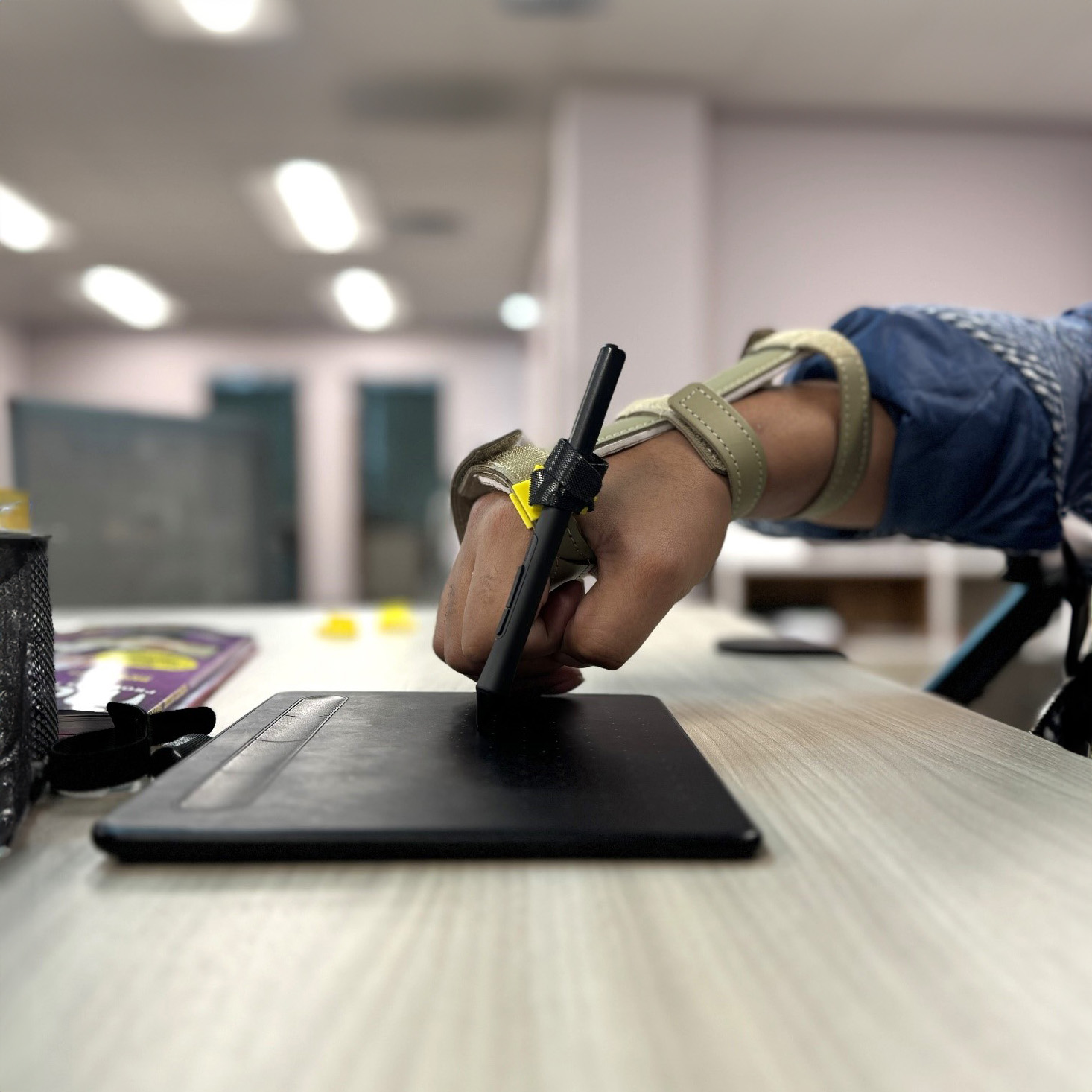

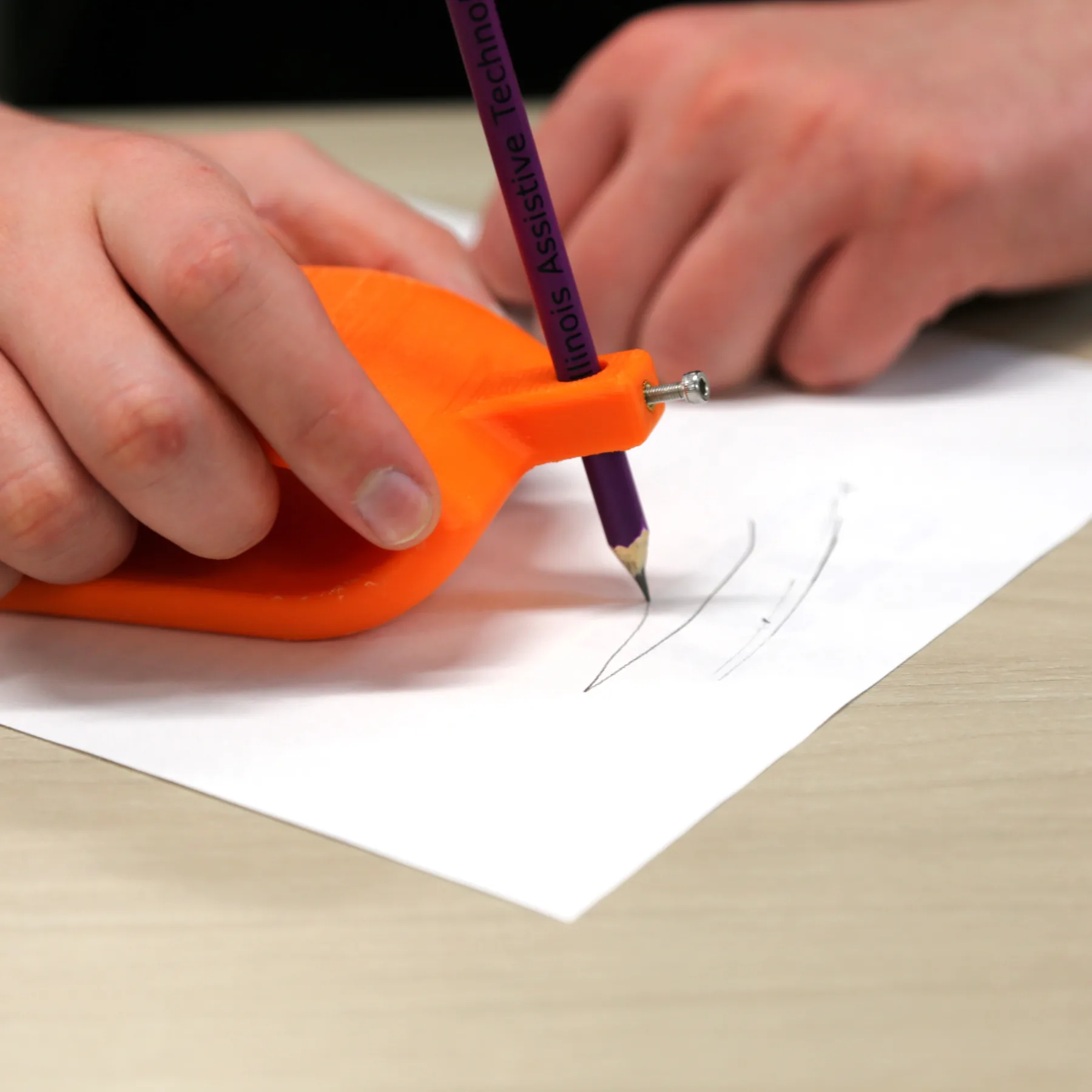

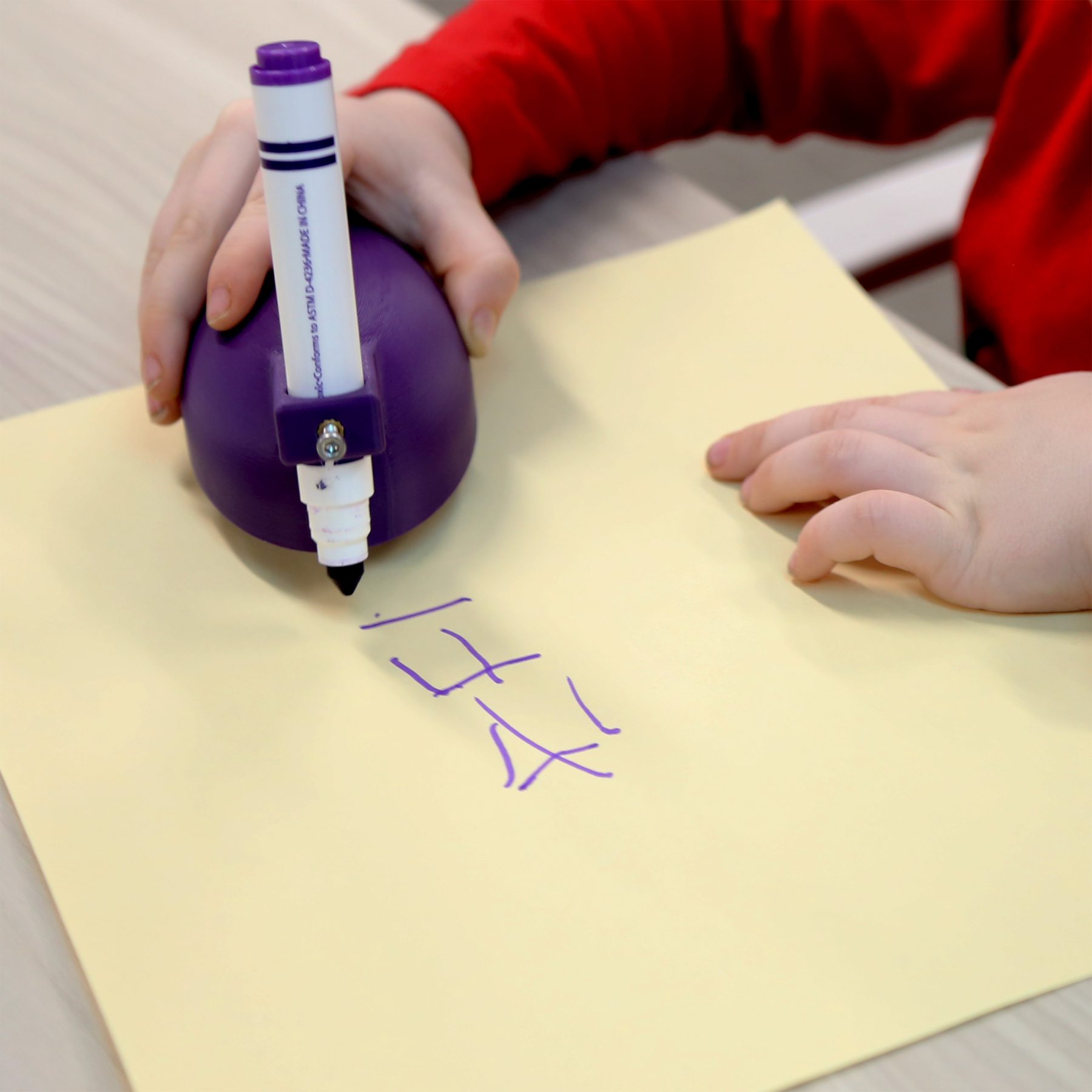

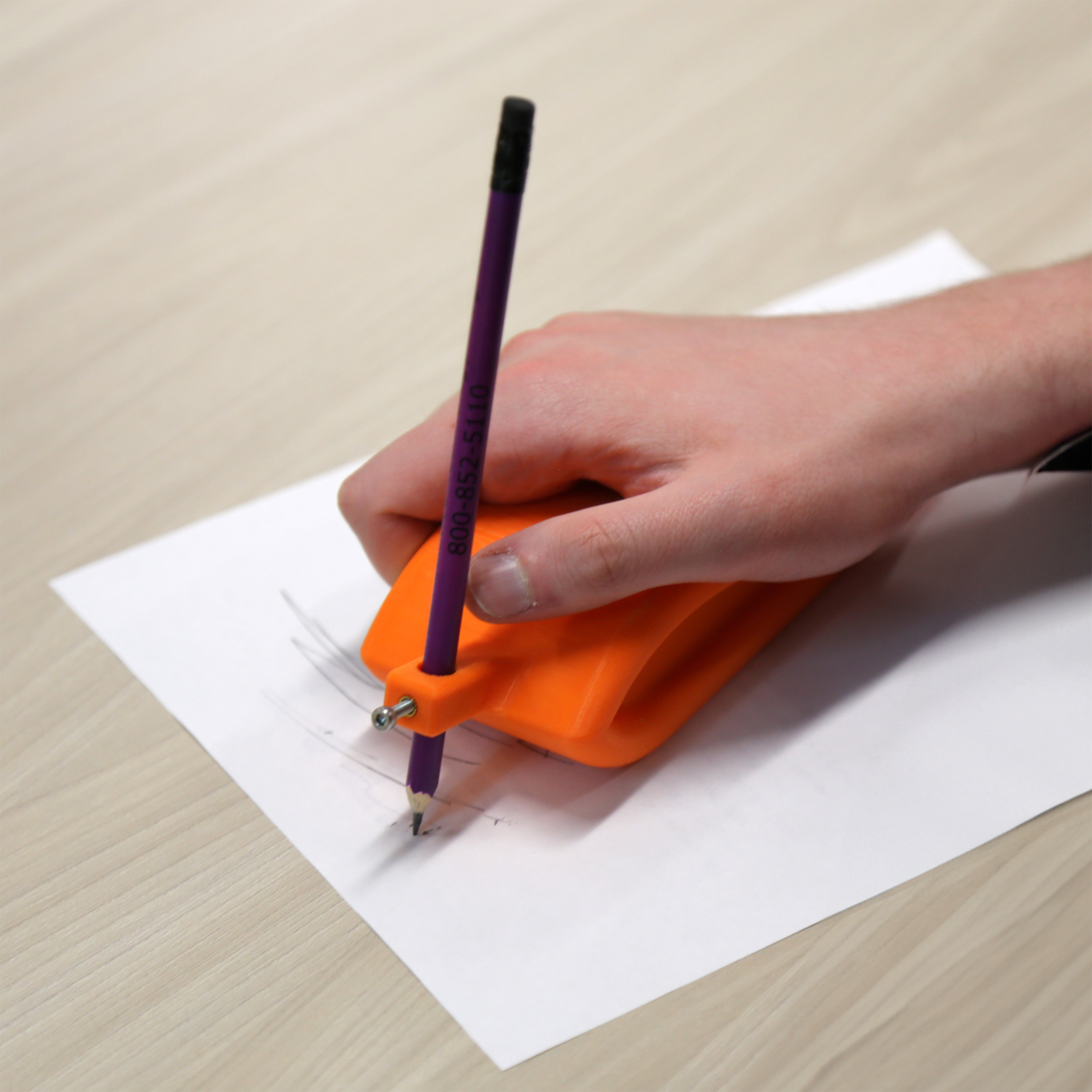

This product helps the user guide writing utensils across a paper.
Fabrication Instructions
Requirements: FDM 3D printer
Material: PETG/PLA, Writing utensil, M size Threaded inserts, soldering iron, Pliers
Nozzle Size: .6mm
Layer Width: .2mm
Supports: Yes
Infill: 15%
Build Plate Adhesion: Skirt
Designer Credit: IATP Makers
You can change the infill to adjust the weight of this device.
The download below is a ZIP file.
Assembly Instructions
- Print STLs
- Once printed, find the placement for the heat insert
- Use the soldering iron to heat up the threaded insert
- Use pliers to place the heat insert, hold until cooled
- Once cooled, place the writing utensil into the hole
- Place a screw into the heat insert
- Tighten the screw to secure the writing utensil
