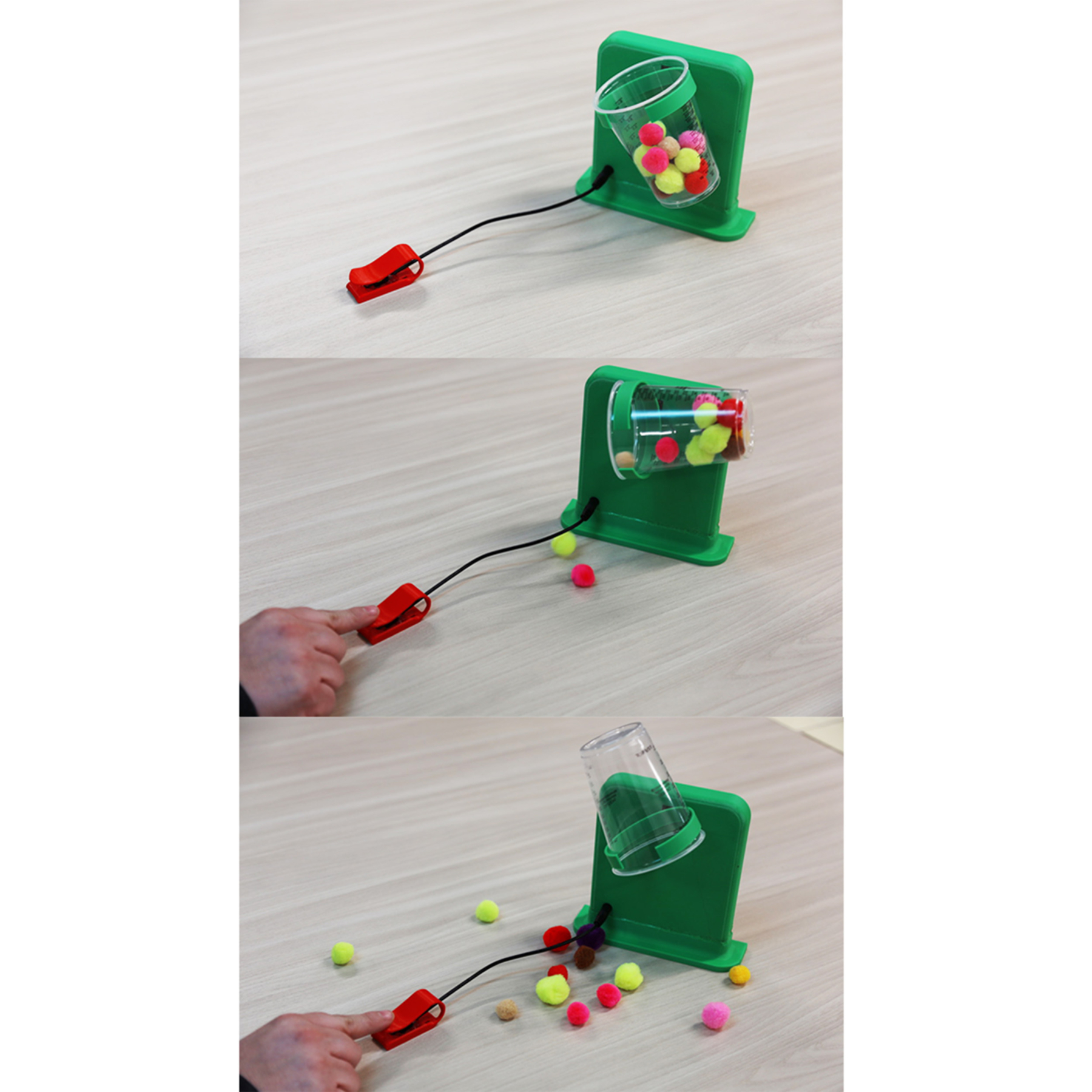

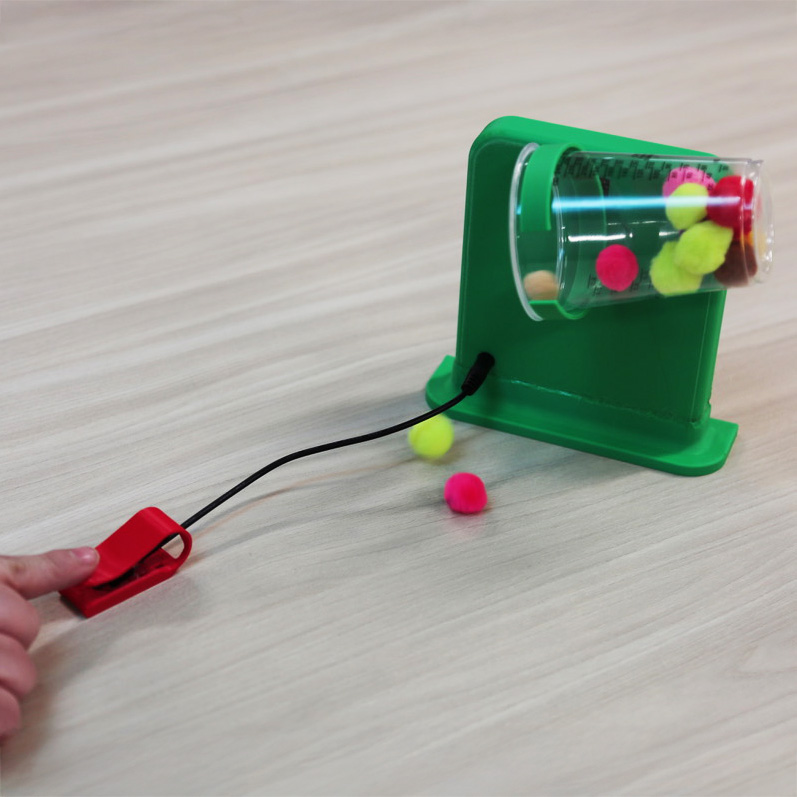

This product is a switch activated device that allows the user to pour a cup.
Fabrication and Assembly Instructions
Requirements: FDM 3D printer
Material: PETG, Disco Ball Motor, Gooseneck Cell Phone Holder
Nozzle Size: .6mm
Layer Width: .2mm
Supports: Yes
Infill: 15%
Build Plate Adhesion: Skirt
Pouring Device Instructions
- Once all components are printed and purchased, gather them in one area.
- Take the Disco Ball Motor and insert the battery interrupter.
Instructions on how to make a battery interrupter can be found here: https://www.instructables.com/No-Solder-Battery-Interrupter/

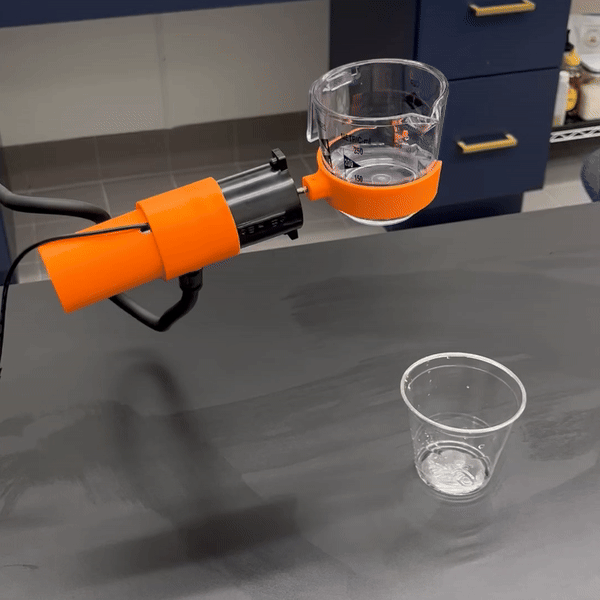

- Slide the 3D printed cuff onto the Disco Ball Motor. If needed, use a small amount of hot glue to adhere the cuff to the motor.
- Attach the rotation cuff to the metal rod on the Disco Ball Motor. Use glue to ensure it does not fall off.
- Attach the coupler to the gooseneck clamp. If needed, use hot glue to ensure a snug fit on the gooseneck.
- Once assembled, plug a switch into the device.
