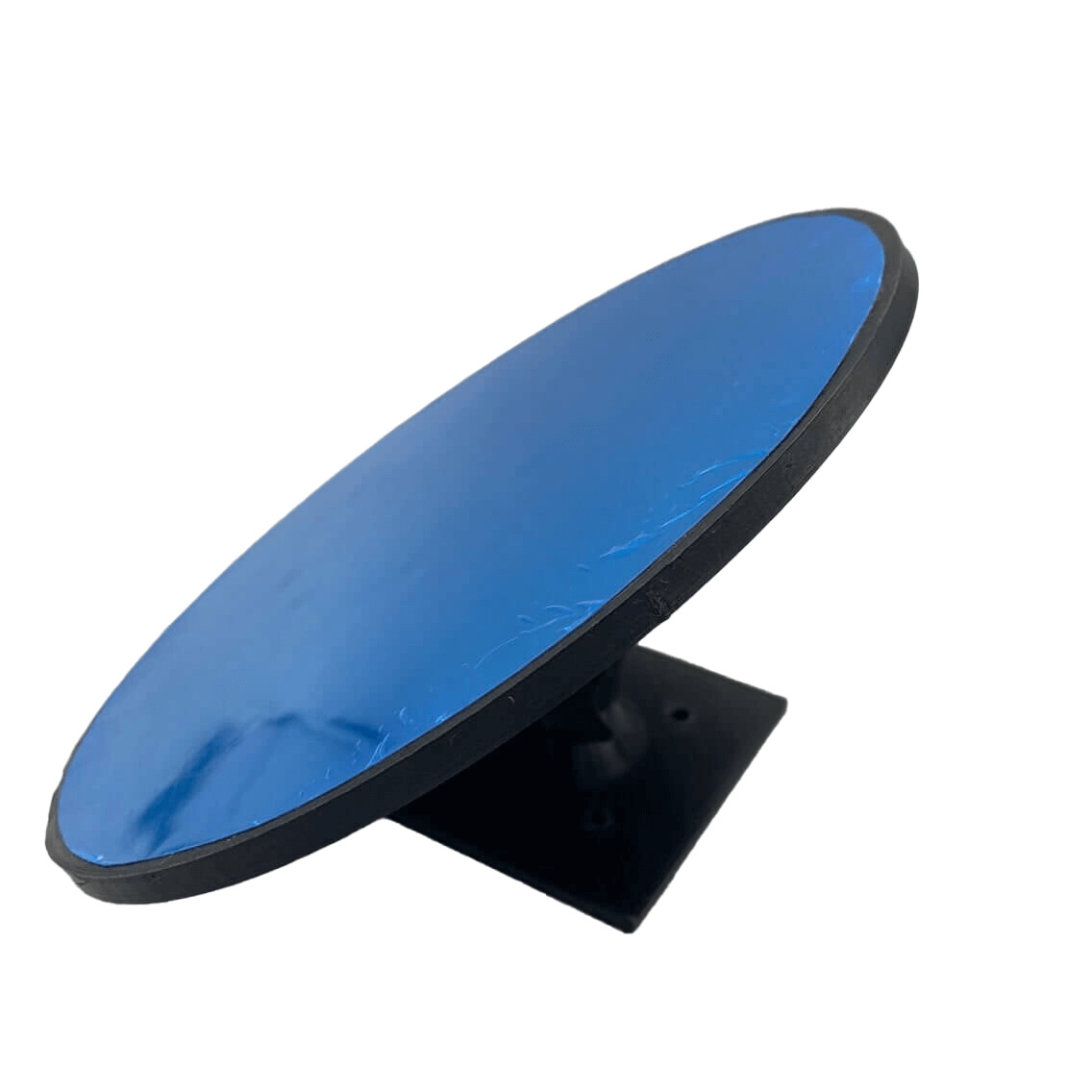

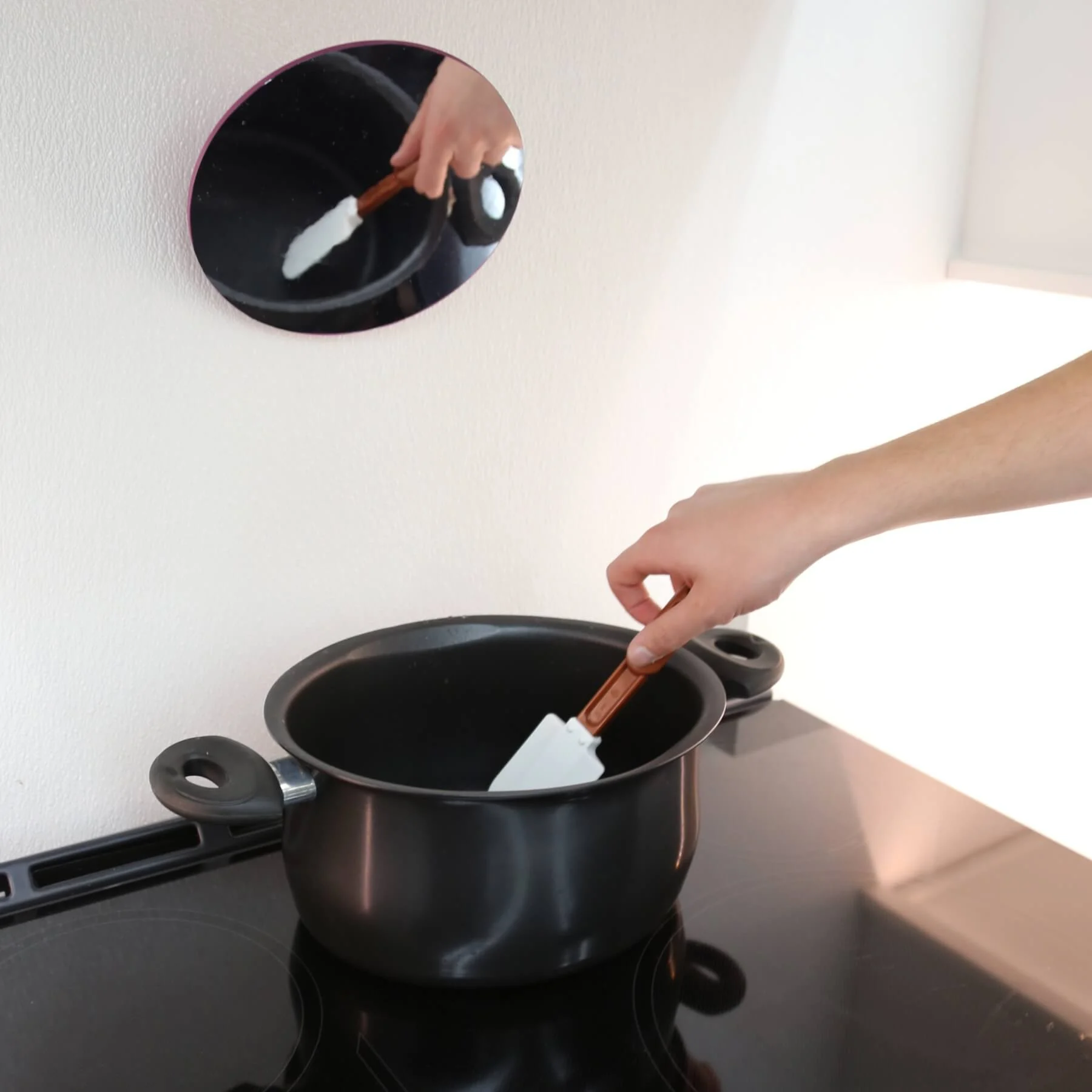

This product mounts to a wall and allows the user to see into pots on the stove from a sitting position. This product can be used in many different settings.
Fabrication Instructions
Requirements: FDM 3D printer
Material: PETG, Fog Resistant Mirror Sheets, Micro-suction Tape,
Nozzle Size: .6mm
Layer Width: .2mm
Supports: Yes
Infill: 15%
Build Plate Adhesion: Skirt
Designer Credit: IATP Makers
Assembly Instructions
- Print the STL files
- Once printed take mirror sheets and cut them to the size of the base of the angled mirror
- Take the Micro-suction tape and cut to size of the wall mount
- Put the two parts of angled mirror together at the joint
- Peel the micro-suction tape to expose the sticky side and stick to the back or side of the stove area you’d like to place
IATP Makers suggest using screws or stick adhesive to secure to wall.
