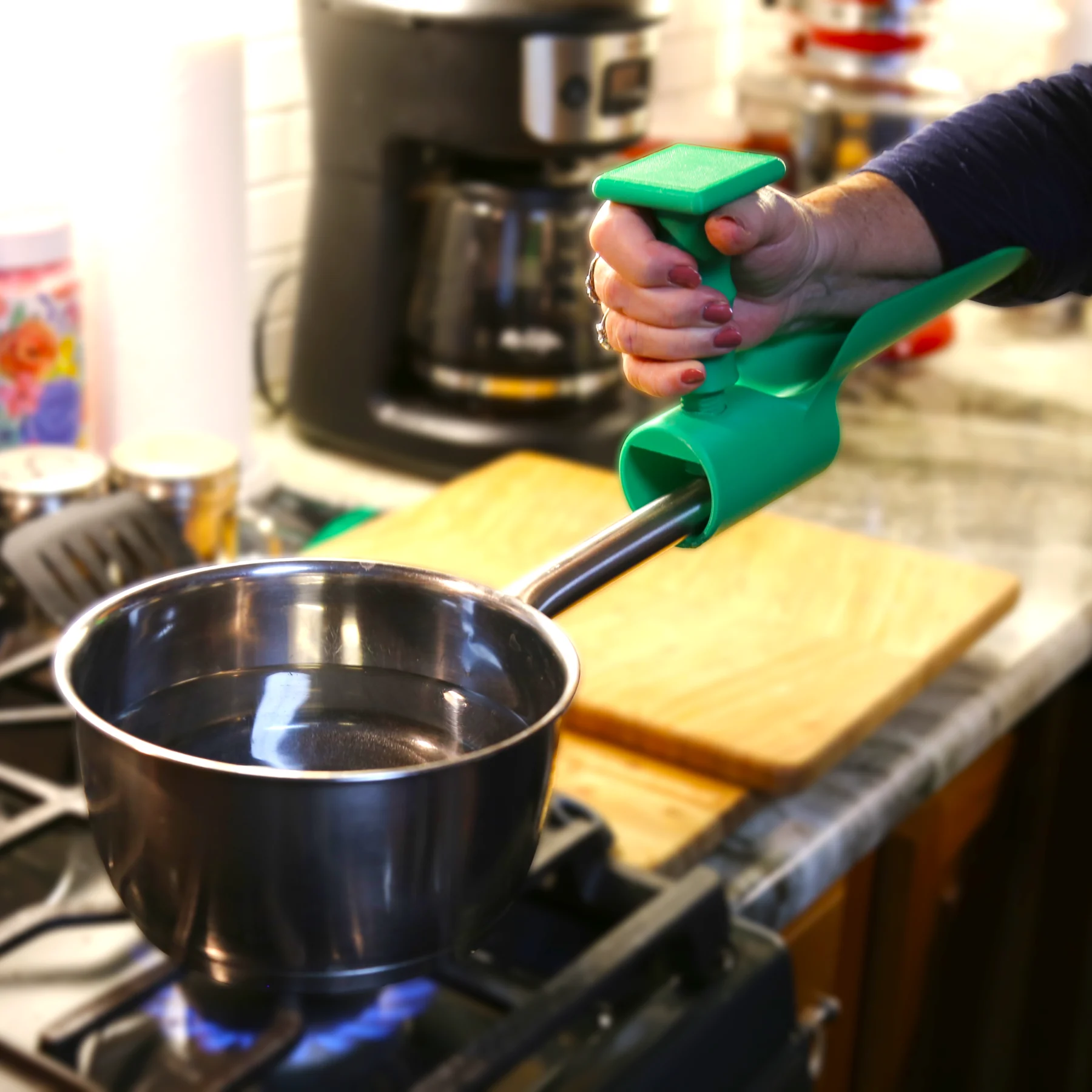

This product attaches to a pan to alleviate strain on the wrist when using a pan.
Fabrication and Assembly Instructions
Requirements: FDM 3D printer
Material: PETG/ABS
Nozzle Size: .6mm
Layer Width: .2mm
Supports: Yes
Infill: 15%
Build Plate Adhesion: Skirt
Designer Credit: IATP Makers
*The Pan Handle is not dishwasher safe.
This product is available by custom order. If you would like to request one please send in a Product Request form with measurements of the pan of your choosing.
- Download the STL file
- Print the STL files (May take multiple prints)
- Screw the Pan Handle to the screw
- (Optional if printed) Place the front alignment of the pan handle slide over the handle of the users choosing of pan or pot for a more secure fit
- Place the adapted pan handle main body over the handle of the users choosing of pan or pot
- Use the Pan Handle with screw attached, to the main body between the users pan
- Tighten until secure
- Once secure, use as needed
This work is licensed under a Creative Commons Attribution-ShareAlike 4.0 International. All products are subject to the IATP Terms and Conditions.
