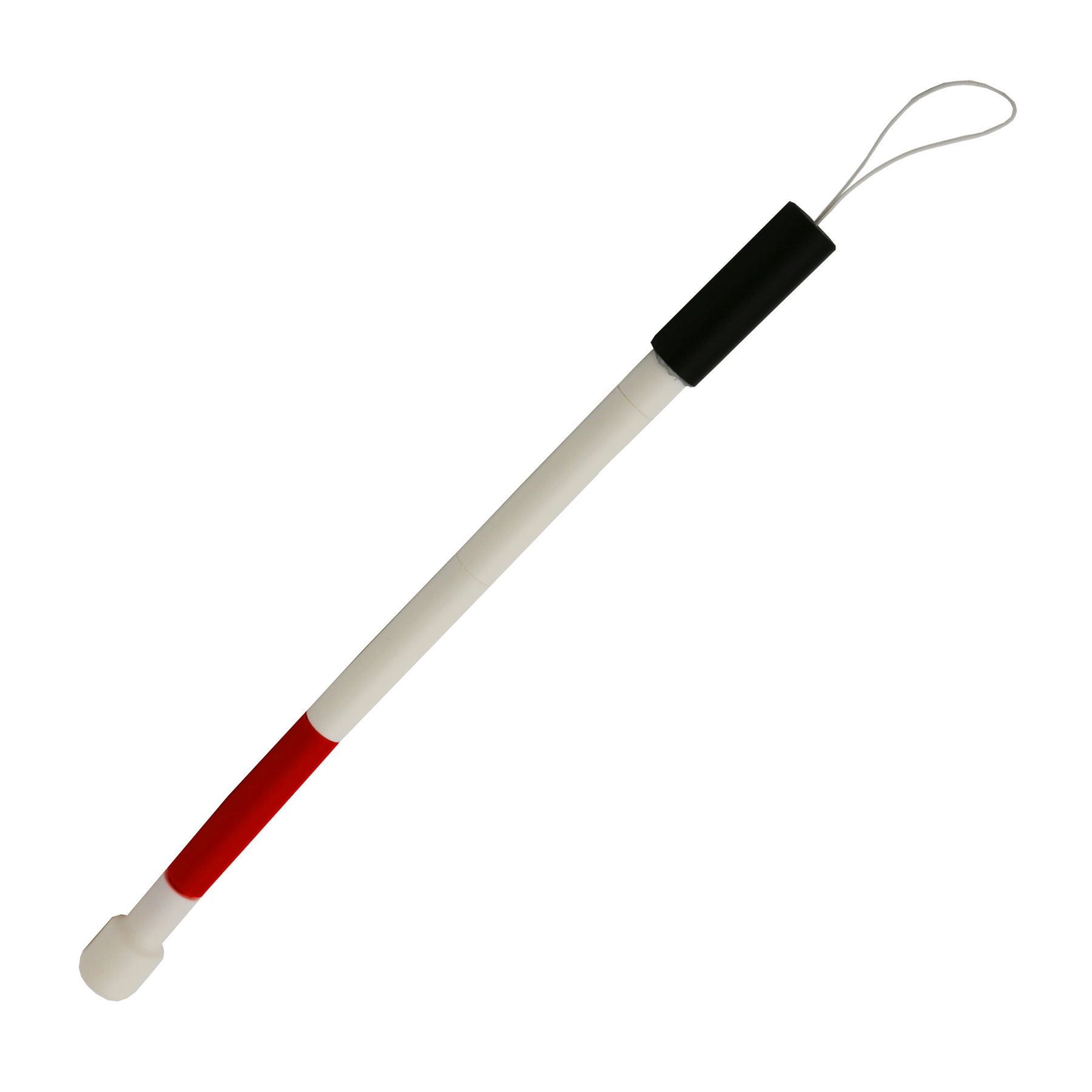

This device was made for educational purposes, to show children how to use a white cane.
Fabrication Instructions
Requirements: FDM 3D printer
Material: PETG/PLA, Elastic String,
Nozzle Size: .6mm
Layer Width: .2mm
Supports: Yes
Infill: 15%
Build Plate Adhesion: Skirt
Designer Credit: IATP Makers
Assembly Instructions
- Print STL files in the desired colors

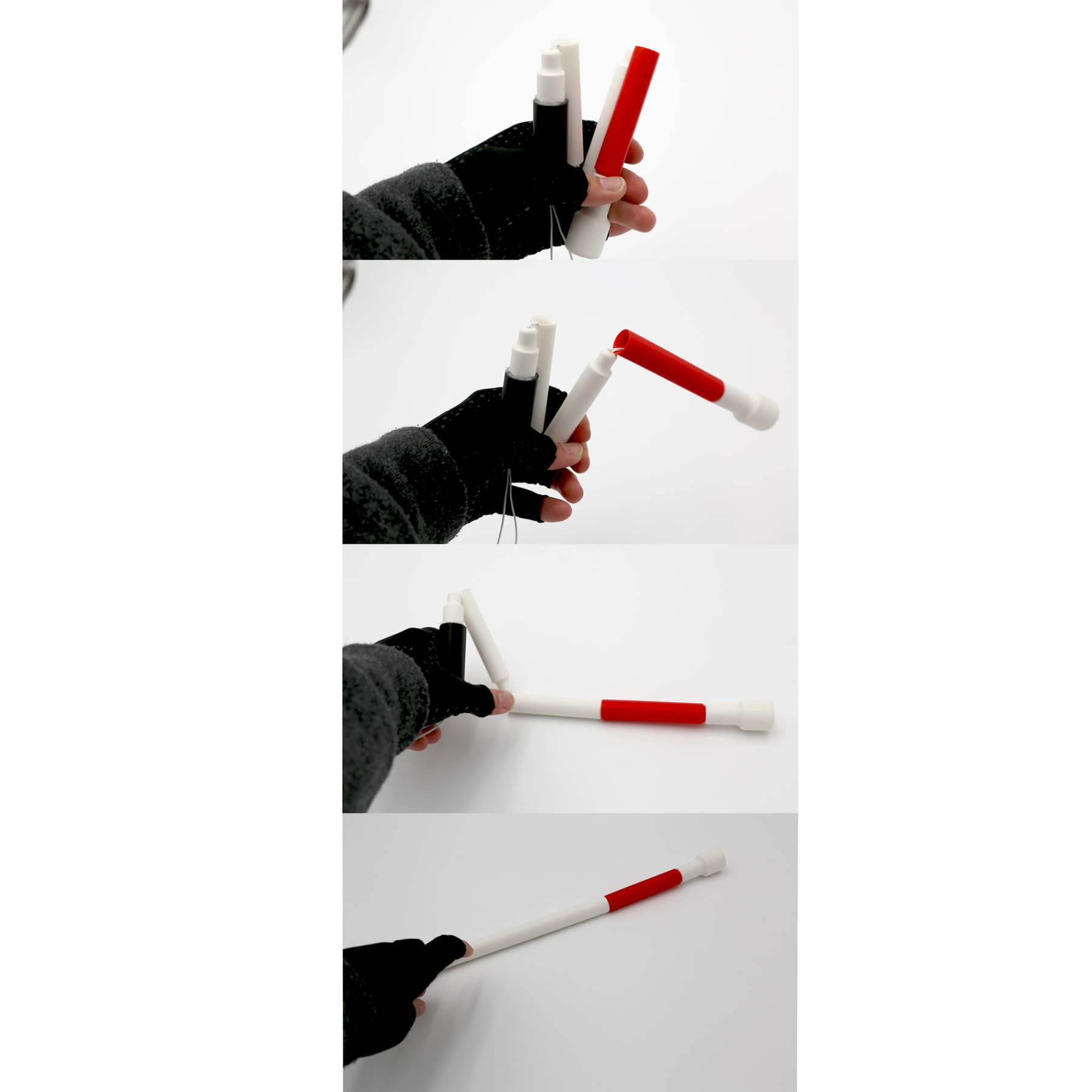

- Thread an elastic cord through the holes in the pieces
-The elastic should be long enough to stick out of both ends with enough material left to tie a knot - Tie a knot in both ends of the elastic cord to ensure the elastic will not come loose
-Hot Glue can be used to help secure the elastic in place at the tip of the cane and at the top of the cane - Hot glue the tip of the cane to the bottom pole piece
- Hot glue the grip piece to the top pole piece
-If desired, an elastic loop can be glued to the grip piece.
This work is licensed under a Creative Commons Attribution-ShareAlike 4.0 International. All products are subject to the IATP Terms and Conditions.
