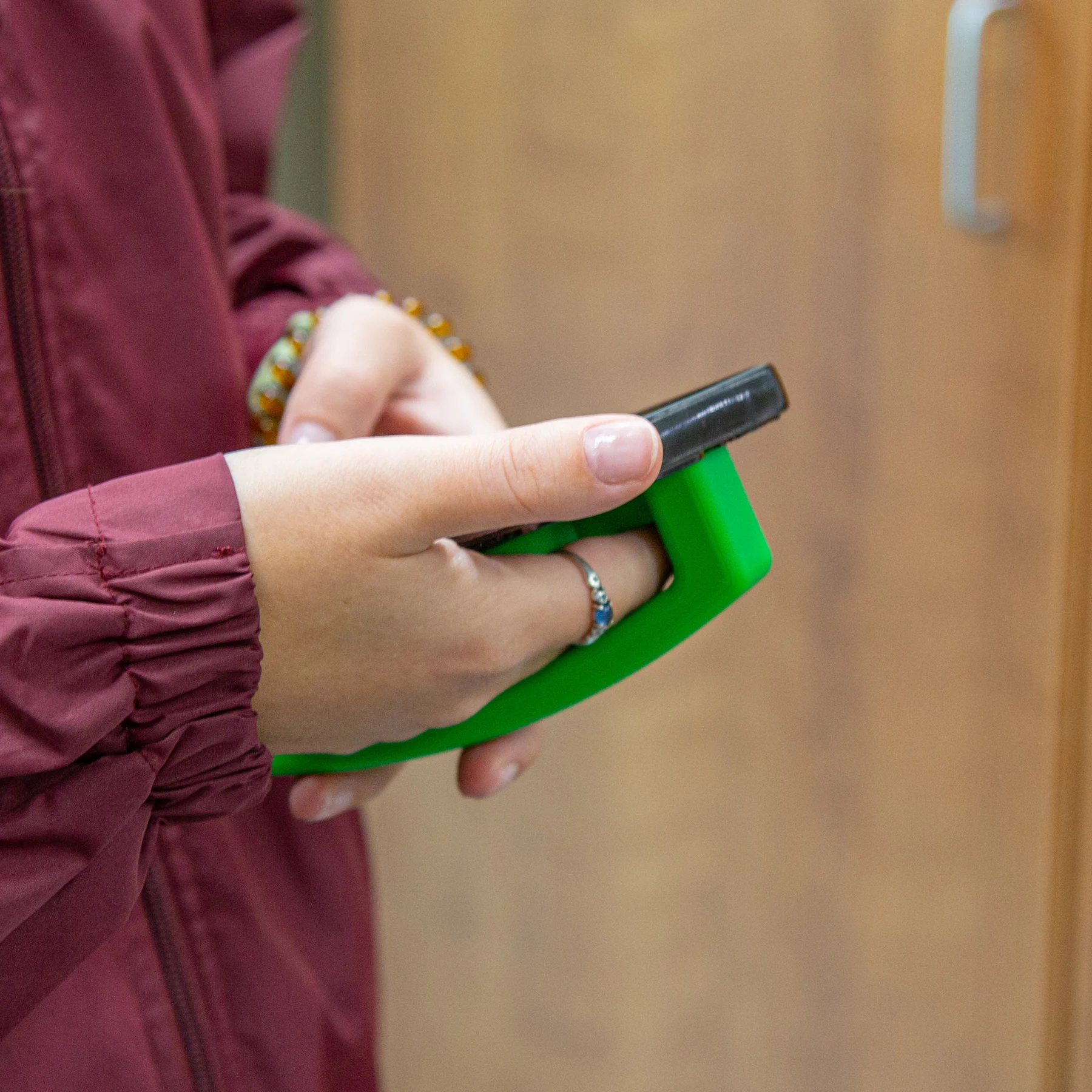

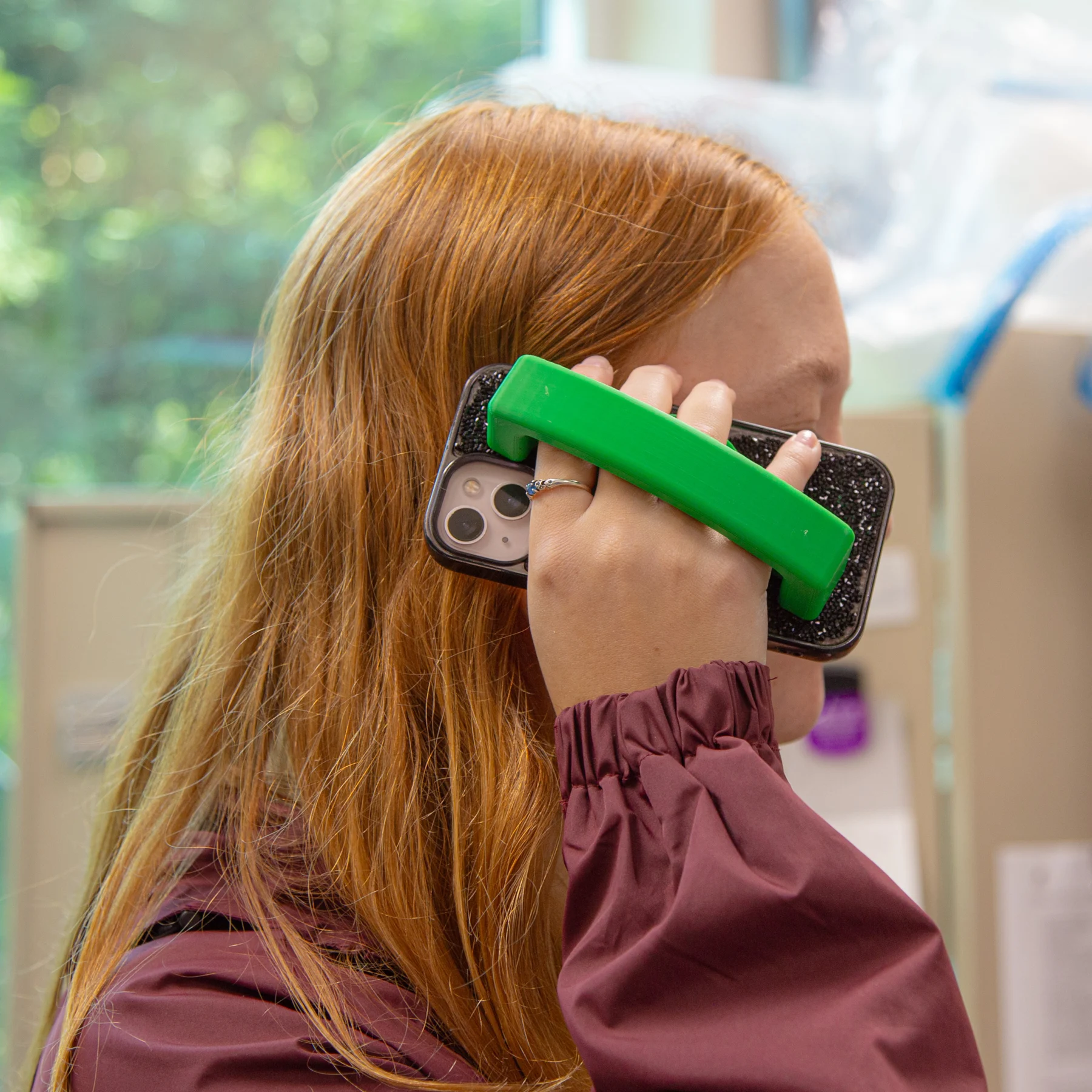

This product is for anyone who has trouble with hand dexterity or holding a phone for a long period of time.
Fabrication Instructions
Requirements: FDM 3D printer
Material: PLA, Mag Safe Metal Ring Sticker, Soldering Iron, Glue, Mag safe phone case,
Nozzle Size: .6mm
Layer Width: .2mm
Supports: Yes
Infill: 20%
Build Plate Adhesion: Skirt
Designer Credit: IATP Makers
Assembly Instructions
- Download STL file
- Print STL file
- Take both prints
- Take the print with the handle and glue the magnet ring in the opening (Make sure it will connect to the phone case by checking the polarity)
- Once the magnet is placed, glue the circle area and add the other print to make it in line with the handle
- Once together, solder the edges for a seamless finish
- Once put together place the handle on top of a mag safe phone case
- Use as needed
