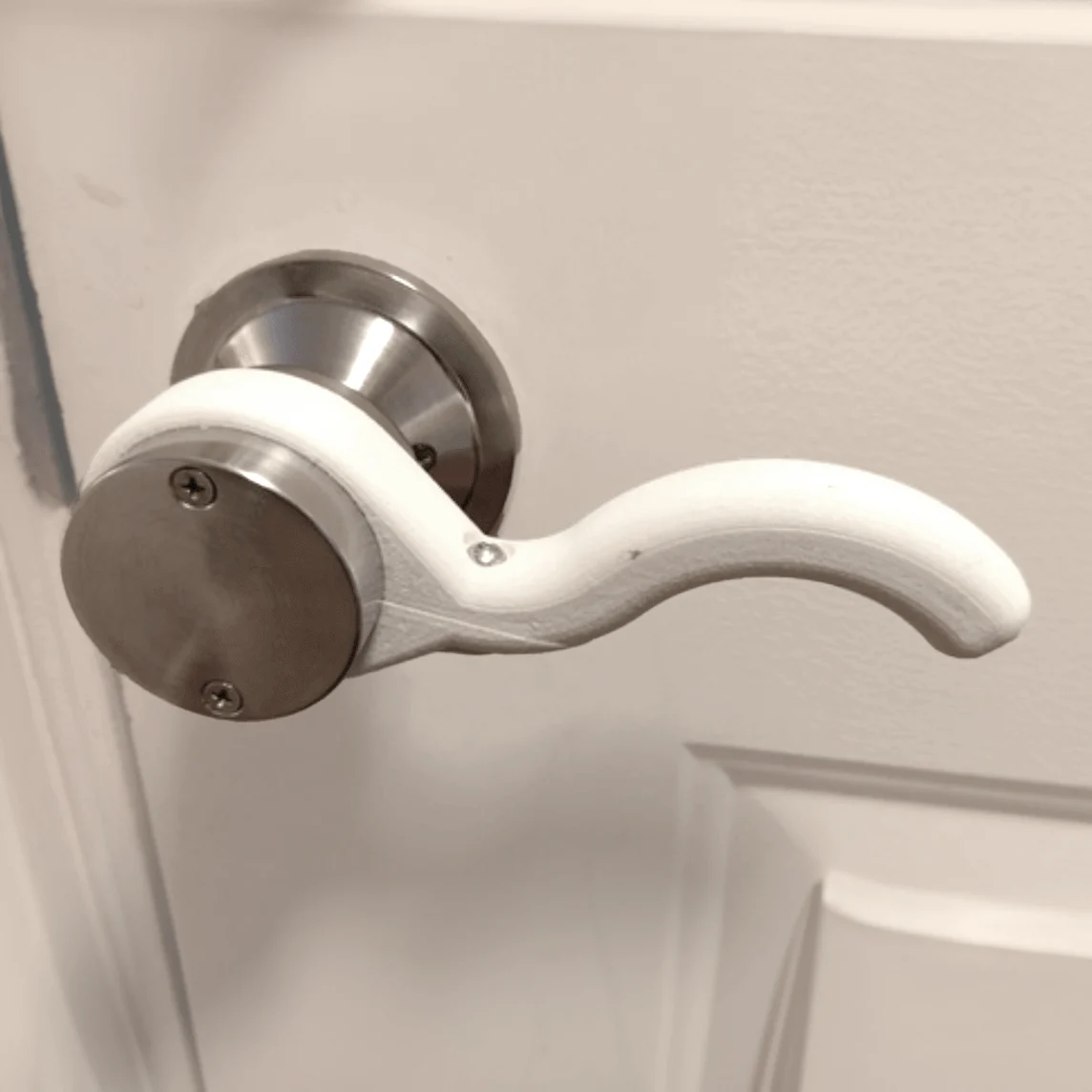

This product converts a standard door knob to a door lever. This design works with most door knobs.
Fabrication and Assembly Instructions
Requirements: FDM 3D printer
Material: PETG/PLA, M5x18 bolts, M5 Nut
Nozzle Size: .6mm
Layer Width: .2mm
Supports: Yes
Infill: 15%
Build Plate Adhesion: Skirt
Designer Credit: Rcolyer
Assembly Instructions
- Download STL file
- Print STL file
- Once printed, smooth down if needed
- Place the device on the door handle
- After placing, secure the nut and bolt in place
- Tighten using the nut and bolt to the device
- Tighten until secure
- Once secured, use the device as needed
This work is licensed under a Creative Commons Attribution-ShareAlike 4.0 International. All products are subject to the IATP Terms and Conditions.
