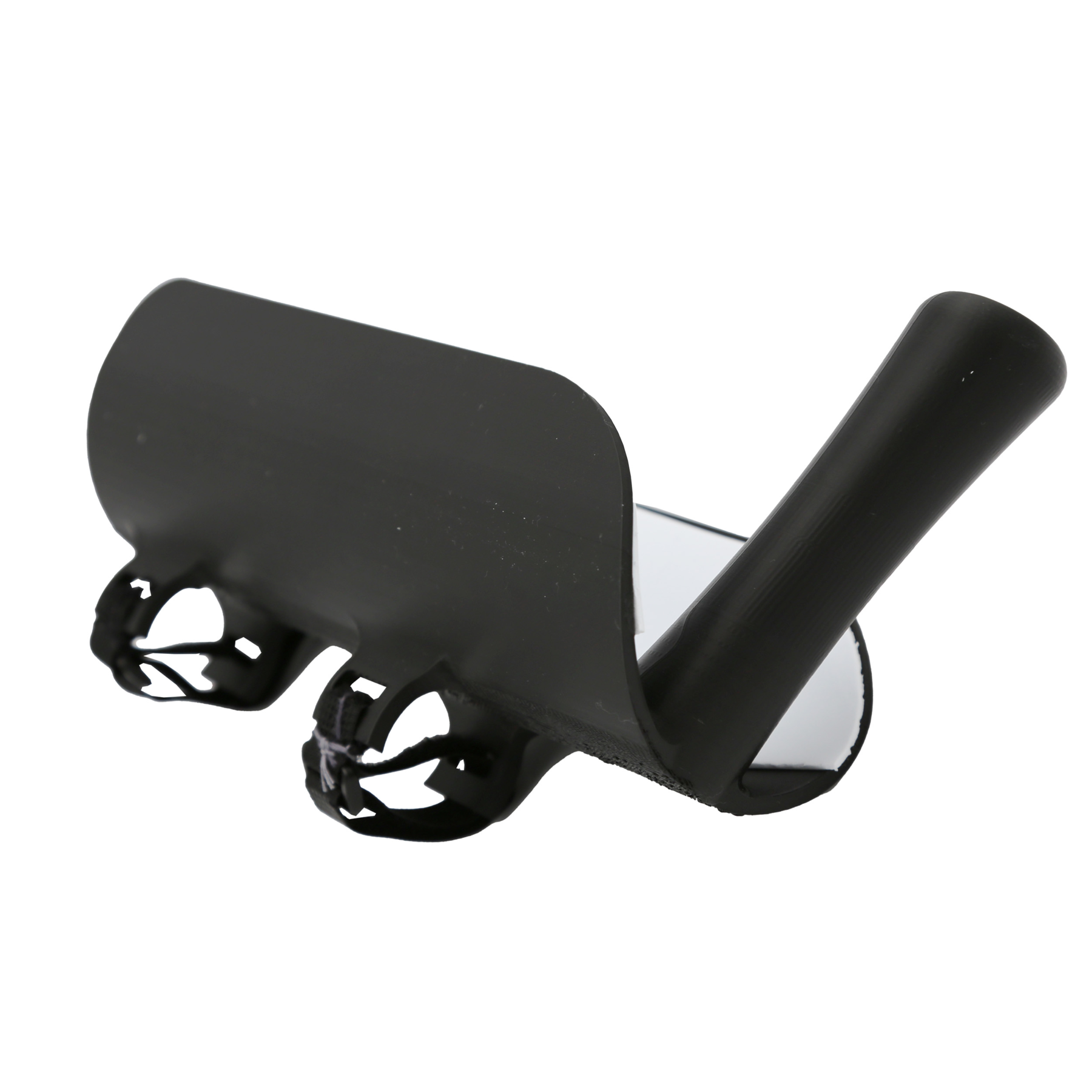

Adaptive Cuff for white cane Product photo with white background
Person using adaptive handle for white cane walking outside on concrete sidewalk
The adapted white cane handle in use while someone is walking on concrete towards the camera

Skills Needed

This product is an attachment for a white cane user. It helps reduce wrist movement, while allowing use of a white cane.

Fabrication Instructions

Requirements: FDM 3D printer
Material: PLA/PETG/ABS, White Cane, Velcro, sewing needle, thread, medical foam padding
Nozzle Size: .6mm
Layer Width: .2mm
Supports: Yes
Infill: 15%
Build Plate Adhesion: Skirt
Designer Credit: IATP Makers

Assembly Instructions

  1. Print STL files
  2. Cut a strip of velcro to be around 6 inches long
  3. Secure velcro into the cuff straps
  4. Attach your white cane to the cuff straps and tighten
  5. Once fully secured, use as needed

Additional options (Optional)

-Add foam adhesive padding for added comfort

-Sew the velcro straps for extra security

Icon

Adapted Cuff for White Cane

1 file(s) 421.37 KB
Download

CC SharealikeThis work is licensed under a Creative Commons Attribution-ShareAlike 4.0 International.  All products are subject to the IATP Terms and Conditions.
